Steel Hinges

Strong and precision-engineered steel hinges designed for smooth door movement, secure installation, dependable strength, and long-lasting performance.

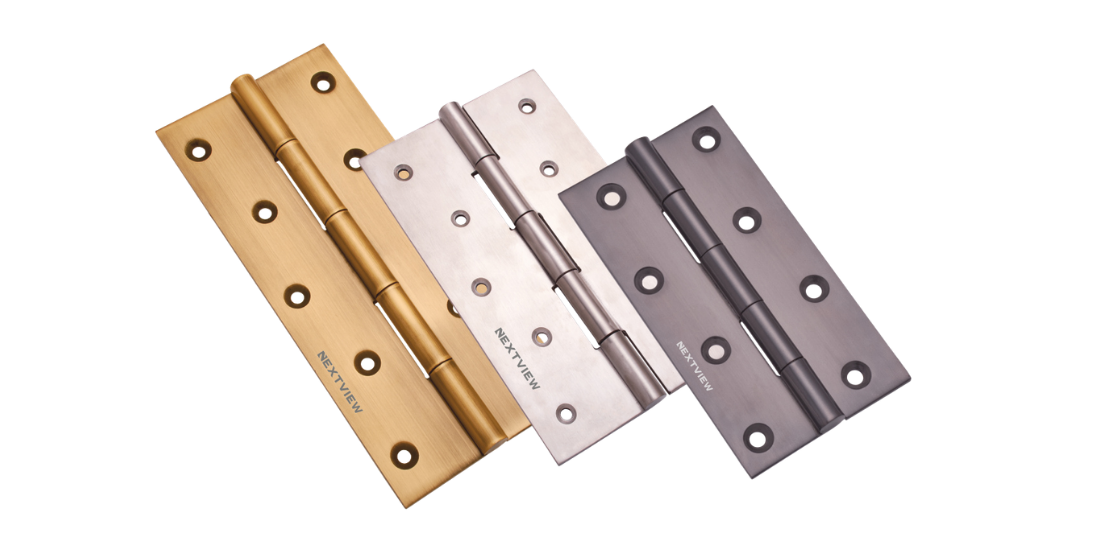

STEEL REGULAR HINGES

Durable steel regular hinges designed for smooth door movement, secure fitting, reliable operation, and consistent everyday performance.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

ITEM NO.	STEEL HINGES (SMOOTH)	NET WT. PER PIECE
538	3" X 1/2 X 3/4	0.042
539	3" X 3/4 X 3/4	0.047
540	4" X 1/2 X 3/4	0.056
541	4" X 3/4 X 3/4	0.066
542	3" X 12 (MED.)	0.080
543	4" X 12 (MED.)	0.132
544	5" X 12 (MED.)	0.180
545	3" X 16	0.056
546	3" X 14	0.070
547	4" X 14	0.116
548	5" X 14	0.152
549	3" X 12	0.094
550	4" X 12	0.150
551	5" X 12	0.205
552	6" X 12	0.245
553	4" X 10	0.225
554	5" X 10	0.285
555	6" X 10	0.340

STEEL LONG RANGE HINGES

Robust steel long range hinges engineered for extended applications, smooth movement, secure installation, and dependable load-bearing performance.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

ITEM NO.	LONG RANGE LAZER CUT STEEL HINGES (SMOOTH)	NET WT. PER PIECE
556	8 X 1.1/4 X 3 MM	0.460
557	10 X 1.1/4 X 3 MM	0.600
558	12 X 1.1/4 X 3 MM	0.715
559	5 X 1.1/2 X 3 MM	0.330
560	6 X 1.1/2 X 3 MM	0.400
561	8 X 1.1/2 X 3 MM	0.515
562	10 X 1.1/2 X 3 MM	0.675
563	12 X 1.1/2 X 3 MM	0.800
564	5 X 2 X 3 MM	0.395
565	6 X 2 X 3 MM	0.490
566	8 X 2 X 3 MM	0.640
567	10 X 2 X 3 MM	0.780
568	12 X 2 X 3 MM	0.980
569	5 X 1.1/4 X 4 MM	0.385
570	6 X 1.1/4 X 4 MM	0.465
571	8 X 1.1/4 X 4 MM	0.625
572	10 X 1.1/4 X 4 MM	0.780
573	12 X 1.1/4 X 4 MM	0.920
574	5 X 1.1/2 X 4 MM	0.430
575	6 X 1.1/2 X 4 MM	0.520
576	8 X 1.1/2 X 4 MM	0.700
577	10 X 1.1/2 X 4 MM	0.880
578	12 X 1.1/2 X 4 MM	1.050
579	5 X 2 X 4 MM	0.530
580	6 X 2 X 4 MM	0.645
581	8 X 2 X 4 MM	0.860
582	10 X 2 X 4 MM	1.080
583	12 X 2 X 4 MM	1.300

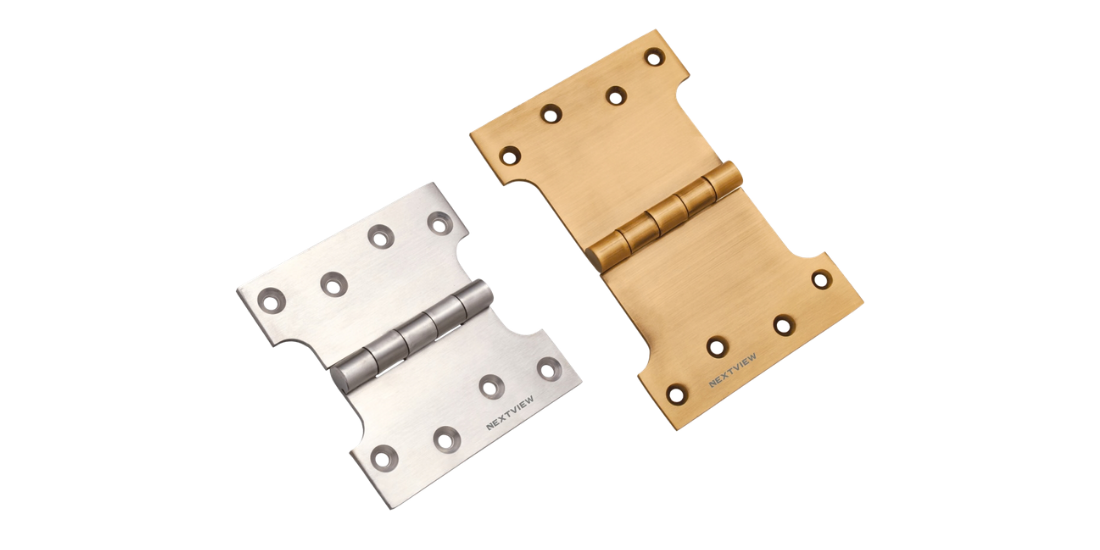

STEEL PARLIAMENT HINGES

Precision-crafted steel Parliament hinges designed for extended projection, smooth door operation, secure fitting, and reliable performance.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

ITEM NO.	PARLIAMENT LAZER CUT STEEL HINGES (SMOOTH)	NET WT. PER PIECE
584	4" X 2" X 2.5 MM	0.190
585	4" X 3" X 2.5 MM	0.225
586	4" X 4" X 2.5 MM	0.260
587	4" X 5" X 2.5 MM	0.290
588	4" X 2" X 3 MM	0.250
589	4" X 3" X 3 MM	0.300
590	4" X 4" X 3 MM	0.340
591	4" X 5" X 3 MM	0.380
592	5" X 4" X 3 MM	0.385
593	5" X 5" X 3 MM	0.430
594	5" X 6" X 3 MM	0.475
595	5" X 8" X 3 MM	0.560

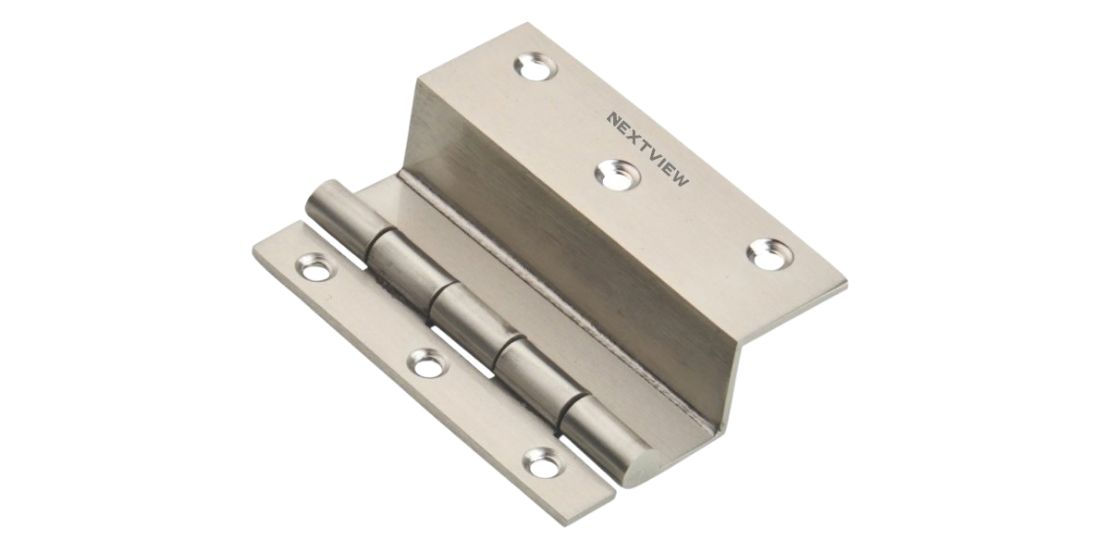

STEEL - L HINGES 90°

Strong 90° steel L hinges designed for secure installation, smooth movement, and dependable performance across various door applications.

Finishes

Satin Lacquer

ITEM NO.	STEEL - L HINGES 90° (SMOOTH)	NET WT. PER PIECE
596	3" X 3/8 (6 MM)	0.083
597	3" X 3/8 (12 MM)	0.089
598	3" X 3/8 (19 MM)	0.096
599	3" X 1/2 (6 MM)	0.087
600	3" X 1/2 (12 MM)	0.094
601	3" X 1/2 (19 MM)	0.101
602	3" X 3/4 (6 MM)	0.103
603	3" X 3/4 (12 MM)	0.110
604	3" X 3/4 (19 MM)	0.117
605	4" X 3/8 (6 MM)	0.108
606	4" X 3/8 (12 MM)	0.117
607	4" X 3/8 (19 MM)	0.125
608	4" X 1/2 (6 MM)	0.117
609	4" X 1/2 (12 MM)	0.125
610	4" X 1/2 (19 MM)	0.135
611	4" X 3/4 (6 MM)	0.138
612	4" X 3/4 (12 MM)	0.146
613	4" X 3/4 (19 MM)	0.157

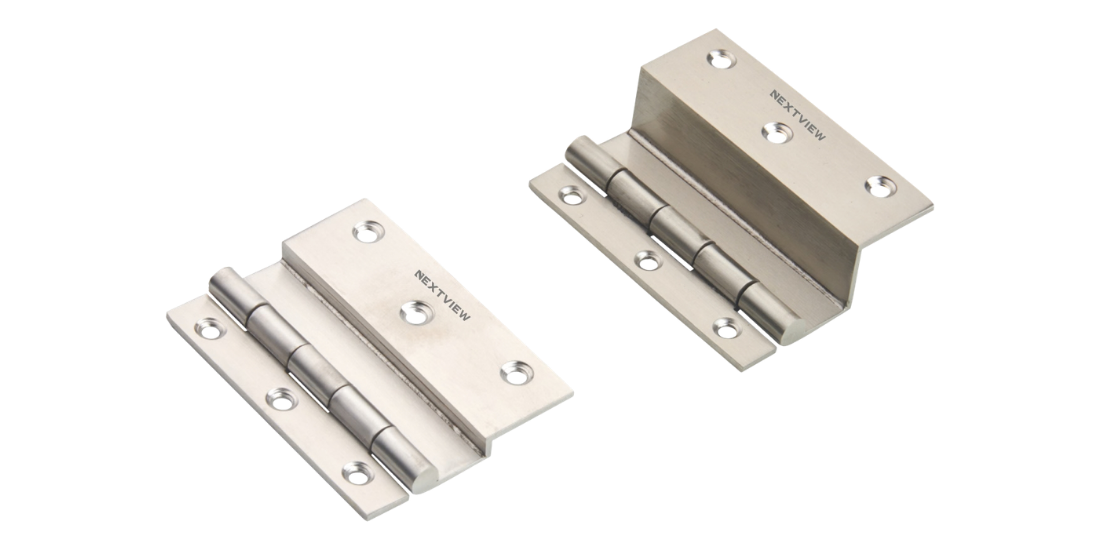

STEEL - 2IN1 HINGES 90° (SMOOTH)

Versatile 90° 2-in-1 steel hinges with a smooth finish, designed for secure fitting and reliable door movement.

Finishes

Satin Lacquer

ITEM NO.	STEEL - 2IN1 HINGES 90° (SMOOTH)	NET WT. PER PIECE
614	3" X 1/2 (6 MM)	0.117
615	3" X 1/2 (12 MM)	0.124
616	3" X 1/2 (19 MM)	0.131
617	3" X 3/4 (6 MM)	0.133
618	3" X 3/4 (12 MM)	0.140
619	3" X 3/4 (19 MM)	0.147
620	4" X 1/2 (6 MM)	0.156
621	4" X 1/2 (12 MM)	0.166
622	4" X 1/2 (19 MM)	0.175
623	4" X 3/4 (6 MM)	0.178
624	4" X 3/4 (12 MM)	0.187
625	4" X 3/4 (19 MM)	0.196
626	3" X W	0.144
627	4" X W	0.192

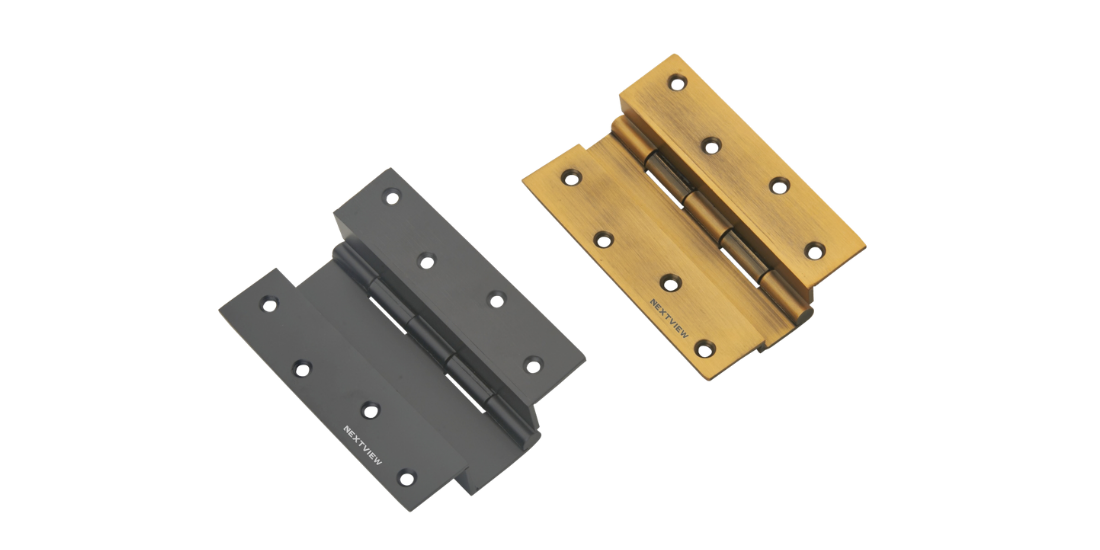

STEEL - Z HINGES 90° (SMOOTH)

Durable 90° steel Z hinges with a smooth finish, offering secure installation, smooth operation, and dependable performance.

Finishes

Satin Lacquer

ITEM NO.	STEEL - Z HINGES 90° (SMOOTH)	NET WT. PER PIECE
628	3" X 1/2	0.008
629	3" X 3/4	0.094
630	4" X 1/2	0.104
631	4" X 3/4	0.126

STEEL - BALL BEARING HINGES

Heavy-duty steel ball bearing hinges designed for smooth, low-friction door movement, secure fitting, and reliable long-term performance.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

ITEM NO.	BALL BEARING LAZER CUT STEEL HINGES (SMOOTH)	NET WT. PER PIECE
202 GRADE - WELDED
632	4" X 3 X 3 MM (2 BALL BEARING) (202) (WELDED)	0.245
633	5" X 3 X 3 MM (2 BALL BEARING) (202) (WELDED)	0.305
634	6" X 3 X 3 MM (2 BALL BEARING) (202) (WELDED)	0.375
635	4" X 3 X 3 MM (4 BALL BEARING) (202) (WELDED)	0.245
636	5" X 3 X 3 MM (4 BALL BEARING) (202) (WELDED)	0.305
637	6" X 3 X 3 MM (4 BALL BEARING) (202) (WELDED)	0.375
304 GRADE - CAP
638	4" X 3 X 3 MM (2 BALL BEARING) (304) (CAP)	0.260
639	5" X 3 X 3 MM (2 BALL BEARING) (304) (CAP)	0.320
640	6" X 3 X 3 MM (2 BALL BEARING) (304) (CAP)	0.390
641	4" X 3 X 3 MM (4 BALL BEARING) (304) (CAP)	0.260
642	5" X 3 X 3 MM (4 BALL BEARING) (304) (CAP)	0.320
643	6" X 3 X 3 MM (4 BALL BEARING) (304) (CAP)	0.390
