Premium Hinges

Precision-engineered brass hinges designed for smooth operation, lasting durability, and a refined architectural finish. Ideal for residential, commercial, and premium door applications.

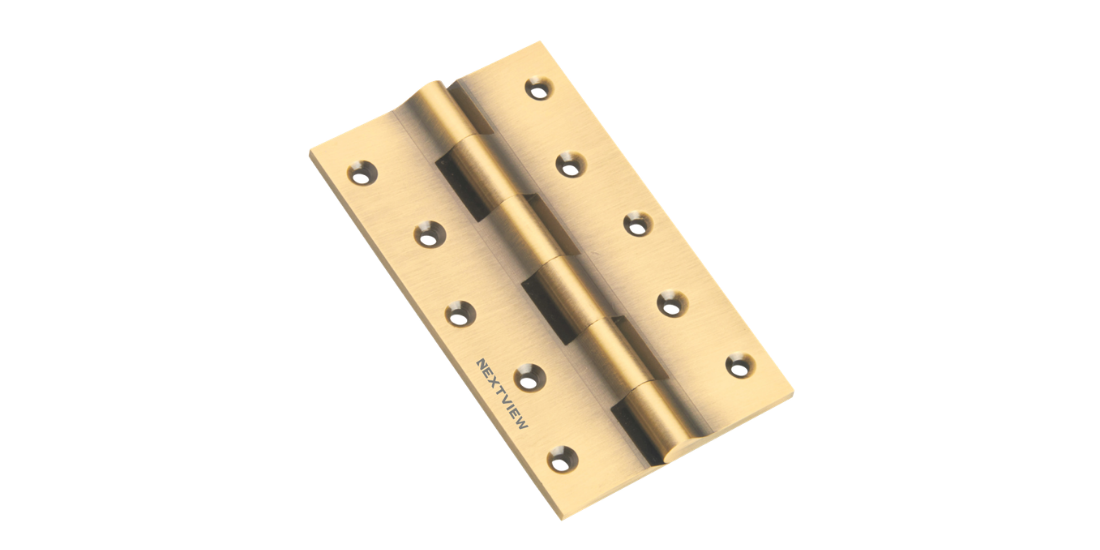

Brass Railway Hinges

Durable brass railway hinges engineered for smooth operation, reliable strength, and long-lasting performance in demanding door applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Railway Hinges (Smooth Movement)	Nett Wt. Per Doz.
1	3" X 7/8 X 1/8 (MED)	0.960
2	4" X 7/8 X 1/8 (MED)	1.280
3	3" X 7/8 X 1/8 (HY.)	1.160
4	4" X 7/8 X 1/8 (HY.)	1.547
5	4" X 1 X 5/32	2.160
6	5" X 1 X 5/32	2.700
7	4" X 1.1/8 X 1/8 (MED)	2.000
8	5" X 1.1/8 X 1/8 (MED)	2.500
9	4" X 1.1/8 X 1/8	2.240
10	5" X 1.1/8 X 1/8	2.800
11	4" X 1.1/8 X 5/32 (MED)	2.420
12	5" X 1.1/8 X 5/32 (MED)	3.025
13	6" X 1.1/8 X 5/32 (MED)	3.630
14	4" X 1.1/8 X 5/32	2.800
15	5" X 1.1/8 X 5/32	3.500
16	6" X 1.1/8 X 5/32	4.200
17	4" X 1.1/4 X 1/8	2.200
18	5" X 1.1/4 X 1/8	2.750
19	4" X 1.1/4 X 5/32 (MED.)	2.580
20	5" X 1.1/4 X 5/32 (MED.)	3.225
21	6" X 1.1/4 X 5/32 (MED.)	3.870
22	4" X 1.1/4 X 5/32	2.880
23	5" X 1.1/4 X 5/32	3.600
24	6" X 1.1/4 X 5/32	4.320
25	4" X 1.1/4 X 5/32 (HY.)	3.240
26	5" X 1.1/4 X 5/32 (HY.)	4.050
27	6" X 1.1/4 X 5/32 (HY.)	4.860
28	5" X 1.1/4 X 3/16	4.650
29	6" X 1.1/4 X 3/16	5.580
30	8" X 1.1/4 X 3/16	7.440
31	5" X 1.1/2 X 5/32	4.750
32	6" X 1.1/2 X 5/32	5.700
33	5" X 1.1/2 X 3/16	5.400
34	6" X 1.1/2 X 3/16	6.480
35	8" X 1.1/2 X 3/16	8.640
36	5" X 1.1/2 X 3/16 (HY.)	6.000
37	6" X 1.1/2 X 3/16 (HY.)	7.200
38	8" X 1.1/2 X 3/16 (HY.)	9.600
39	10" X 1.1/2 X 3/16 (HY.)	12.000
40	12" X 1.1/2 X 3/16 (HY.)	14.400
41	5" X 2 X 3/16	6.750
42	6" X 2 X 3/16	8.100
43	8" X 2 X 3/16	10.800
44	10" X 2 X 3/16	13.500
45	12" X 2 X 3/16	16.200

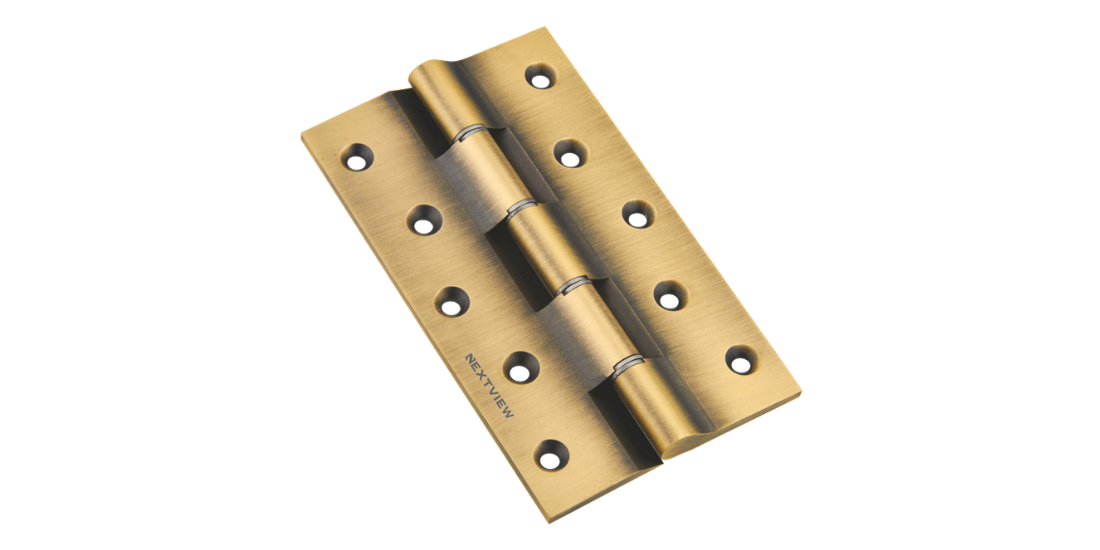

Brass Lock Washer Hinges

Precision-made brass lock washer hinges designed for secure fitting, smooth movement, and dependable performance across various door applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Lock Washer Hinges (Smooth Movement)	Nett Wt. Per Doz.
46	4" × 1.1/8" × 5/32" (LW)	2.880
47	5" × 1.1/8" × 5/32" (LW)	3.600
48	6" × 1.1/8" × 5/32" (LW)	4.320
49	4" × 1.1/4" × 5/32" (LW)	3.360
50	5" × 1.1/4" × 5/32" (LW)	4.200
51	6" × 1.1/4" × 5/32" (LW)	5.040
52	4" × 1.1/4" × 3/16" (LW)	4.000
53	5" × 1.1/4" × 3/16" (LW)	5.000
54	6" × 1.1/4" × 3/16" (LW)	6.000
55	8" × 1.1/4" × 3/16" (LW)	8.000
56	4" × 1.1/2" × 5/32" (LW)	4.000
57	5" × 1.1/2" × 5/32" (LW)	5.000
58	6" × 1.1/2" × 5/32" (LW)	6.000
59	4" × 1.1/2" × 3/16" (LW)	4.800
60	5" × 1.1/2" × 3/16" (LW)	6.000
61	6" × 1.1/2" × 3/16" (LW)	7.200
62	8" × 1.1/2" × 3/16" (LW)	9.600

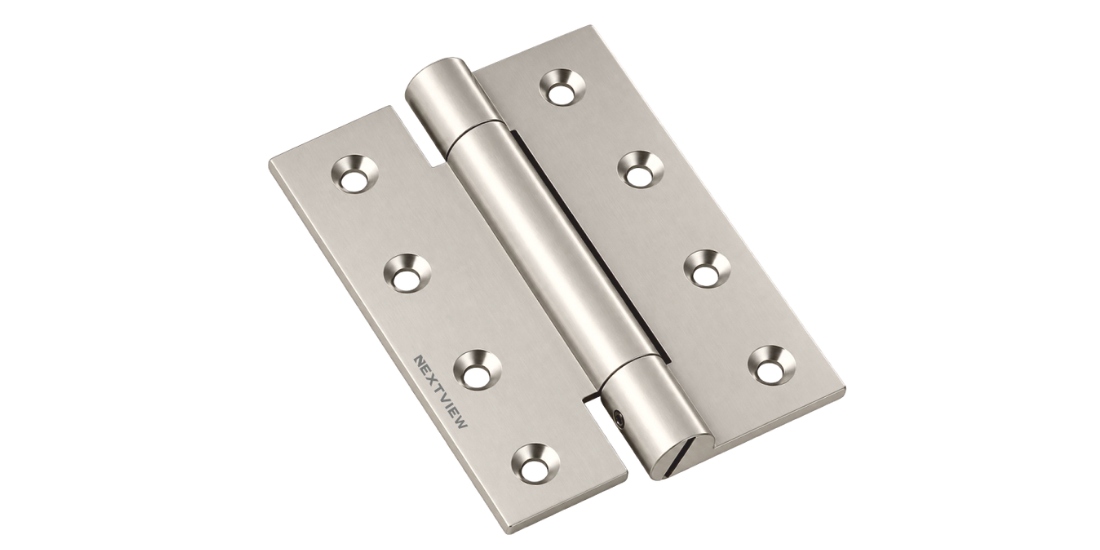

Brass Spring Hinges

High-quality brass spring hinges designed for controlled door movement and automatic closing, offering reliable performance and lasting durability.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Spring Hinges	Nett Wt. Per Doz.
63	4" (SINGLE ACTION)	3.180
64	5" (SINGLE ACTION)	3.960

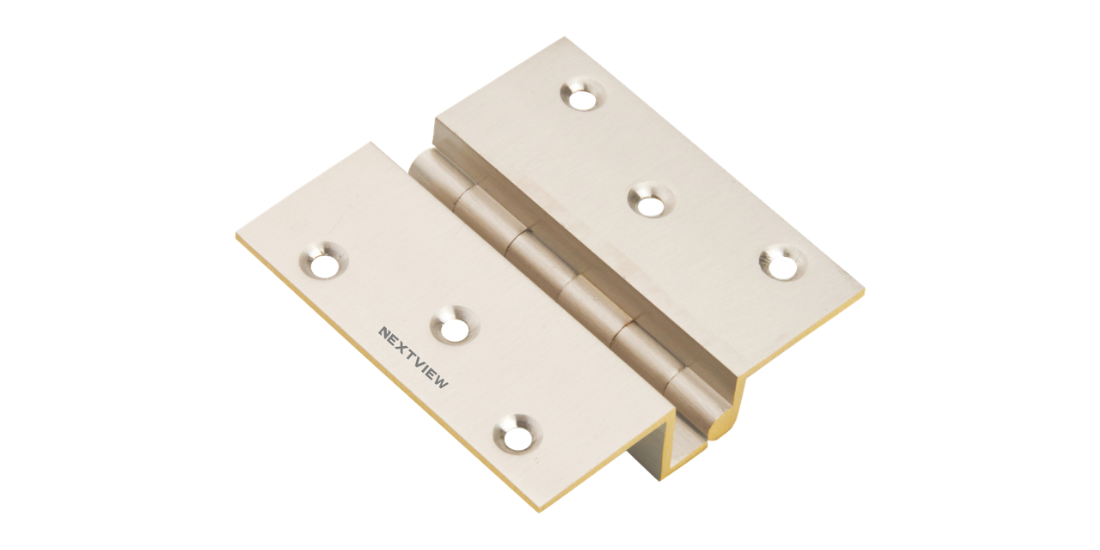

Brass W Hinges

Precision-engineered brass W hinges combining sturdy construction with smooth operation, making them suitable for a wide range of door and cabinet applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

ITEM NO.	BRASS W HINGES (SMOOTH MOVEMENT)	NETT WT. PER DOZ.
65	3" X 3/8 (6 MM) (W)	1.480
66	3" X 3/8 (12 MM) (W)	1.590
67	3" X 3/8 (19 MM) (W)	1.700
68	3" X 1/2 (6 MM) (W)	1.595
69	3" X 1/2 (12 MM) (W)	1.690
70	3" X 1/2 (19 MM) (W)	1.800
71	3" X 3/4 (6 MM) (W)	1.800
72	3" X 3/4 (12 MM) (W)	1.890
73	3" X 3/4 (19 MM) (W)	2.000
74	4" X 3/8 (6 MM) (W)	1.950
75	4" X 3/8 (12 MM) (W)	2.120
76	4" X 3/8 (19 MM) (W)	2.200
77	4" X 1/2 (6 MM) (W)	2.090
78	4" X 1/2 (12 MM) (W)	2.200
79	4" X 1/2 (19 MM) (W)	2.370
80	4" X 3/4 (6 MM) (W)	2.380
81	4" X 3/4 (12 MM) (W)	2.500
82	4" X 3/4 (19 MM) (W)	2.700
83	3" X W - HINGES (LIGHT)(.100)	1.240
84	3" X W - HINGES (MED.)(.110)	1.320
85	3" X W - HINGES (HEAVY)(.130)	1.650
86	3" X W - HINGES (EX. HY.)(.150)	1.740
87	4" X W - HINGES (MED.)	1.930
88	4" X W - HINGES (HEAVY)	2.190

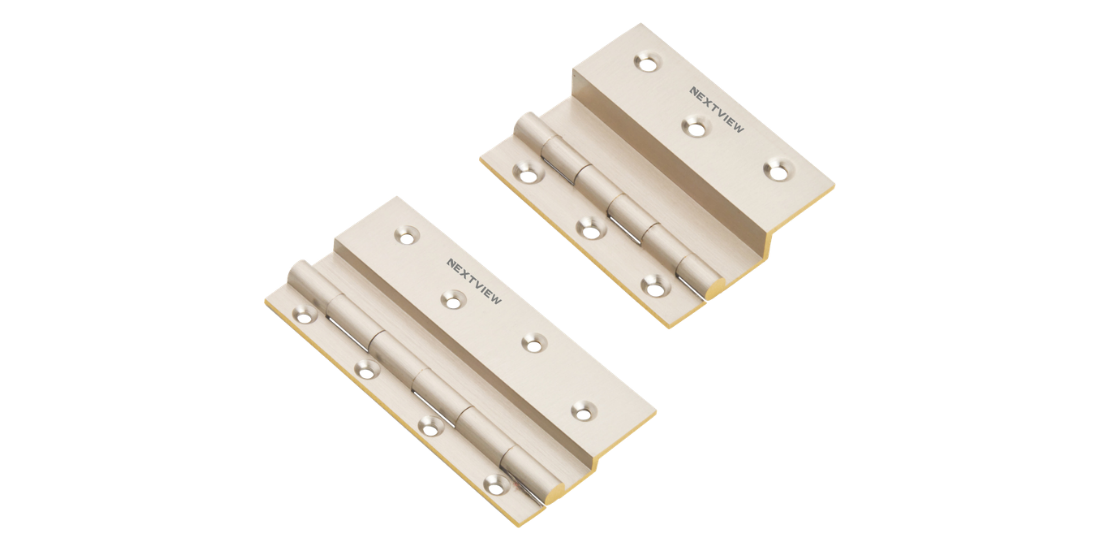

Brass L Hinges

Strong and reliable brass L hinges crafted for smooth movement, secure installation, and consistent performance in residential and commercial applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass L Hinges (Smooth Movement)	Nett Wt. Per Doz.
89	3" X 3/8 (6 MM) (L)	1.070
90	3" X 3/8 (12 MM) (L)	1.215
91	3" X 3/8 (19 MM) (L)	1.290
92	3" X 1/2 (6 MM) (L)	1.220
93	3" X 1/2 (12 MM) (L)	1.330
94	3" X 1/2 (19 MM) (L)	1.470
95	3" X 5/8 (6 MM) (L)	1.320
96	3" X 5/8 (12 MM) (L)	1.430
97	3" X 5/8 (19 MM) (L)	1.525
98	3" X 3/4 (6 MM) (L)	1.440
99	3" X 3/4 (12 MM) (L)	1.495
100	3" X 3/4 (19 MM) (L)	1.630
101	4" X 3/8 (6 MM) (L)	1.450
102	4" X 3/8 (12 MM) (L)	1.590
103	4" X 3/8 (19 MM) (L)	1.720
104	4" X 1/2 (6 MM) (L)	1.625
105	4" X 1/2 (12 MM) (L)	1.770
106	4" X 1/2 (19 MM) (L)	1.920
107	4" X 5/8 (6 MM) (L)	1.750
108	4" X 5/8 (12 MM) (L)	1.900
109	4" X 5/8 (19 MM) (L)	2.025
110	4" X 3/4 (6 MM) (L)	1.900
111	4" X 3/4 (12 MM) (L)	2.020
112	4" X 3/4 (19 MM) (L)	2.180
113	4" X 1.1/8 (6 MM) (L)	2.450
114	4" X 1.1/8 (12 MM) (L)	2.650
115	4" X 1.1/8 (19 MM) (L)	2.725

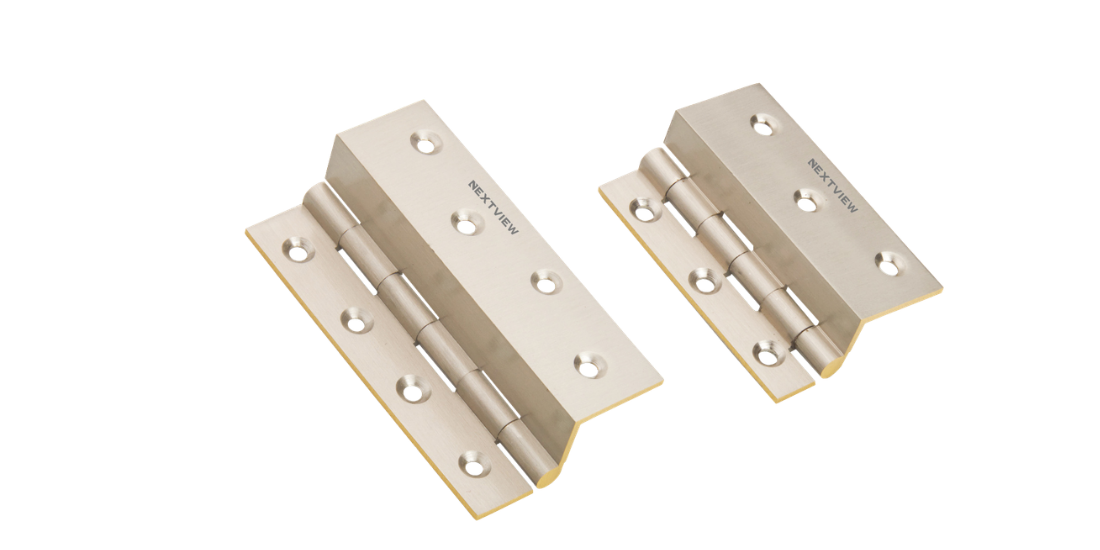

Brass Z Hinges

Durable brass Z hinges designed with precision for dependable movement, secure fitting, and long-lasting performance in various door applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Z Hinges (Smooth Movement)	Nett Wt. Per Doz.
116	3" X 1/2 (Z)	1.060
117	3" X 3/4 (Z)	1.210
118	4" X 1/2 (Z)	1.415
119	4" X 3/4 (Z)	1.615

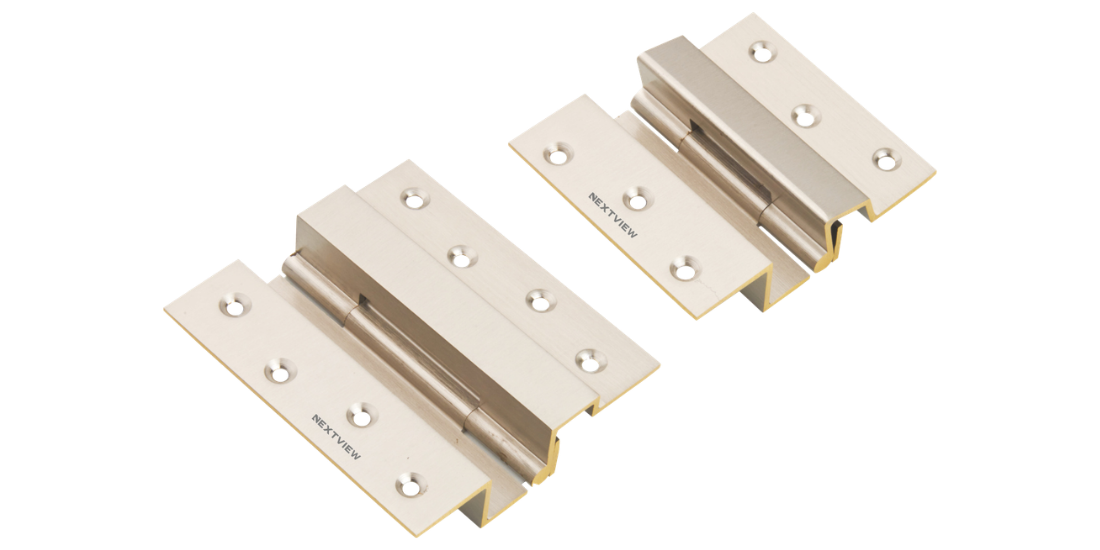

Brass Duck Hinges

Robust brass Duck hinges manufactured for dependable operation, smooth movement, and lasting strength across demanding hardware applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Duck Hinges (Smooth Movement)	Nett Wt. Per Doz.
120	3" X 19 X 19 (HALF)	2.370
121	3" X 19 X 19 (FULL)	2.300
122	4" X 19 X 19 (HALF)	3.160
123	4" X 19 X 19 (FULL)	3.080
124	3" X 25 X 25 (HALF)	2.975
125	3" X 25 X 25 (FULL)	2.900
126	4" X 25 X 25 (HALF)	3.870
127	4" X 25 X 25 (FULL)	3.825
128	3" X 25 X 19 (HALF)	3.030
129	3" X 25 X 19 (FULL)	2.950
130	4" X 25 X 19 (HALF)	4.030
131	4" X 25 X 19 (FULL)	3.850
132	3" X 19 X 25 (HALF)	2.390
133	3" X 19 X 25 (FULL)	2.230
134	4" X 19 X 25 (HALF)	3.180
135	4" X 19 X 25 (FULL)	2.950
136	3" X 35 X 25 (HALF)	5.040
137	3" X 35 X 25 (FULL)	4.920
138	4" X 35 X 25 (HALF)	6.700
139	4" X 35 X 25 (FULL)	6.550
140	4" X 30 X 25 (HALF)	5.850
141	4" X 30 X 25 (FULL)	5.500
142	4" X 30 X 19 (HALF)	6.000
143	4" X 30 X 19 (FULL)	5.650
144	4" X 35 X 19 (HALF)	7.200
145	4" X 35 X 19 (FULL)	6.750

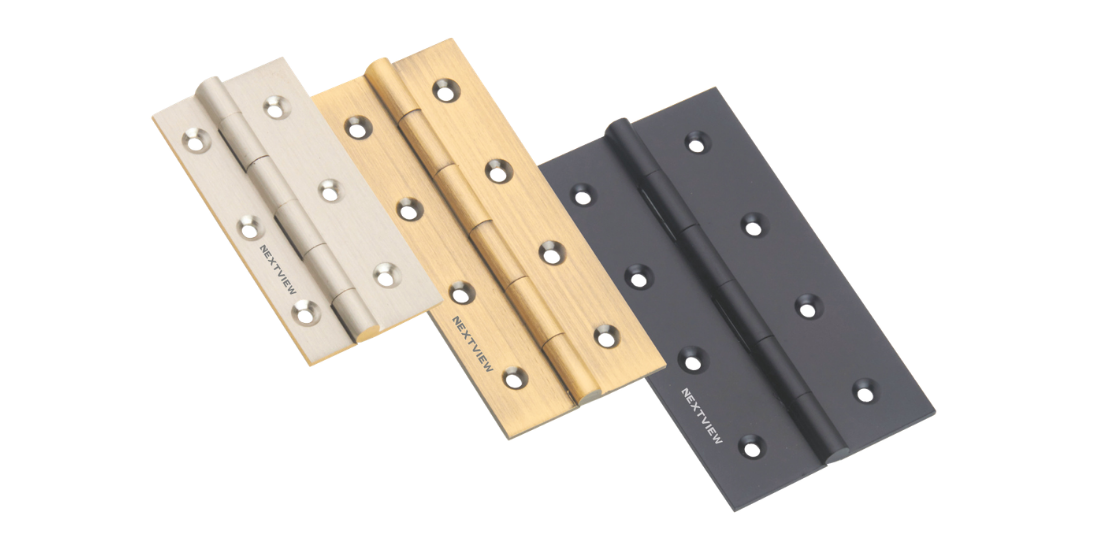

Brass Butt Hinges

Precision-crafted brass butt hinges offering reliable strength, smooth door movement, and durable performance for residential, commercial, and architectural applications.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Butt Hinges (Smooth Movement)	Nett Wt. Per Doz.
146	3" X 3/8 X 5/8	0.620
147	3" X 1/2 X 3/4	0.740
148	3" X 3/4 X 3/4	0.800
149	3" X 1/2 X 1	0.870
150	3" X 3/4 X 1	0.900
151	3" X 1 X 1	0.960
152	4" X 3/8 X 5/8	0.840
153	4" X 1/2 X 3/4	1.000
154	4" X 3/4 X 3/4	1.050
155	4" X 1/2 X 1	1.070
156	4" X 3/4 X 1	1.200
157	4" X 1 X 1	1.280

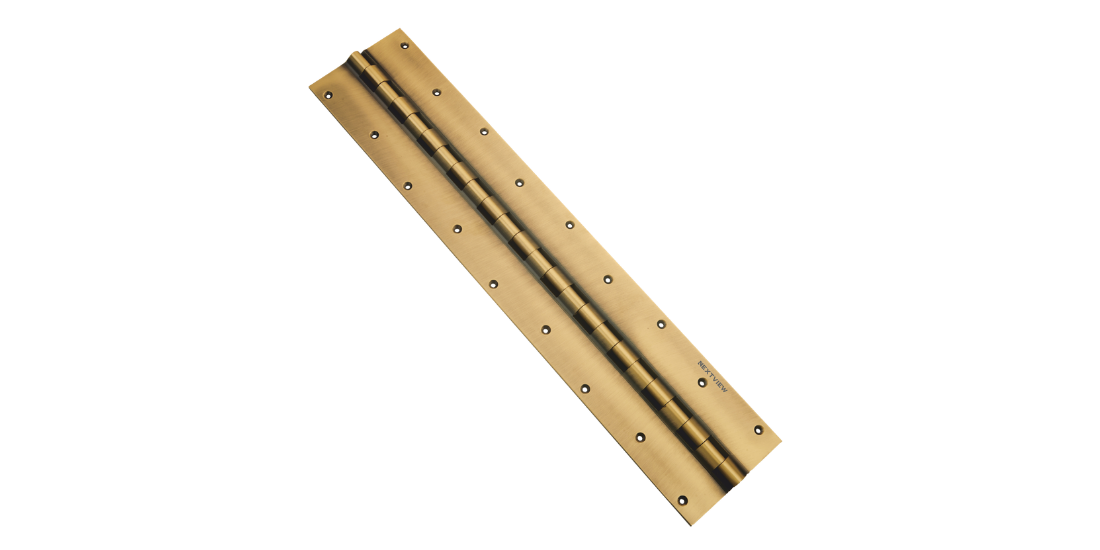

Brass Long Range Railway Hinges

Heavy-duty brass long range railway hinges engineered for extended applications, delivering excellent durability, smooth operation, and dependable load performance.

Finishes

Satin Lacquer

Antique

Matt Antique

Black

Graphite

PVD Gold

PVD Rose Gold

Item No.	Brass Long Range Railway Hinges (Smooth Movement)	Nett Wt. Per Pcs.
5" WIDTH
158	5" X 2.1/4 X 5 MM	0.810
159	6" X 2.1/4 X 5 MM	0.975
160	8" X 2.1/4 X 5 MM	1.280
161	10" X 2.1/4 X 5 MM	1.600
162	12" X 2.1/4 X 5 MM	1.920
163	14" X 2.1/4 X 5 MM	2.280
164	16" X 2.1/4 X 5 MM	2.650
165	18" X 2.1/4 X 5 MM	3.050
166	24" X 2.1/4 X 5 MM	3.950
167	30" X 2.1/4 X 5 MM	5.000
168	36" X 2.1/4 X 5 MM	6.000
5.5" WIDTH
169	5" X 2.1/2 X 5 MM	0.860
170	6" X 2.1/2 X 5 MM	1.040
171	8" X 2.1/2 X 5 MM	1.370
172	10" X 2.1/2 X 5 MM	1.710
173	12" X 2.1/2 X 5 MM	2.050
174	14" X 2.1/2 X 5 MM	2.500
175	16" X 2.1/2 X 5 MM	2.850
176	18" X 2.1/2 X 5 MM	3.200
177	24" X 2.1/2 X 5 MM	4.200
178	30" X 2.1/2 X 5 MM	5.250
179	36" X 2.1/2 X 5 MM	6.250
6" WIDTH
180	5" X 2.3/4 X 5 MM	0.900
181	6" X 2.3/4 X 5 MM	1.100
182	8" X 2.3/4 X 5 MM	1.500
183	10" X 2.3/4 X 5 MM	1.850
184	12" X 2.3/4 X 5 MM	2.200
185	14" X 2.3/4 X 5 MM	2.600
186	16" X 2.3/4 X 5 MM	3.000
187	18" X 2.3/4 X 5 MM	3.350
188	24" X 2.3/4 X 5 MM	4.500
189	30" X 2.3/4 X 5 MM	5.500
190	36" X 2.3/4 X 5 MM	6.500
3" WIDTH
191	5" X 1.1/4 X 6 MM	0.605
192	6" X 1.1/4 X 6 MM	0.725
193	8" X 1.1/4 X 6 MM	0.970
194	10" X 1.1/4 X 6 MM	1.225
195	12" X 1.1/4 X 6 MM	1.500
196	14" X 1.1/4 X 6 MM	1.750
197	16" X 1.1/4 X 6 MM	2.000
198	18" X 1.1/4 X 6 MM	2.300
3.5" WIDTH
199	5" X 1.1/2 X 6 MM	0.720
200	6" X 1.1/2 X 6 MM	0.860
201	8" X 1.1/2 X 6 MM	1.150
202	10" X 1.1/2 X 6 MM	1.440
203	12" X 1.1/2 X 6 MM	1.720
204	14" X 1.1/2 X 6 MM	2.050
205	16" X 1.1/2 X 6 MM	2.400
206	18" X 1.1/2 X 6 MM	2.700
207	24" X 1.1/2 X 6 MM	3.550
208	30" X 1.1/2 X 6 MM	4.450
209	36" X 1.1/2 X 6 MM	5.300
4.5" WIDTH
210	5" X 2 X 6 MM	0.860
211	6" X 2 X 6 MM	1.050
212	8" X 2 X 6 MM	1.400
213	10" X 2 X 6 MM	1.750
214	12" X 2 X 6 MM	2.100
215	14" X 2 X 6 MM	2.550
216	16" X 2 X 6 MM	2.900
217	18" X 2 X 6 MM	3.250
218	24" X 2 X 6 MM	4.250
219	30" X 2 X 6 MM	5.250
220	36" X 2 X 6 MM	6.400
